ZWO EFW 8 x 1.25″

The latest EFW (Electronic Filter Wheel), larger than the EFW Mini but still low on weight. Only 400gr.
384,00 €

Άμεσα διαθέσιμο

Άμεσα διαθέσιμο

Αποστέλλεται εντός 24-48 ωρών.
Συνήθως, παραγγελίες που λαμβάνουμε μέχρι τις 4μ.μ  για άμεσα διαθέσιμα είδη , αποστέλλονται αυθημερόν.

Διαθεσιμότητα: Σε απόθεμα
SKU
ZWO-EFW

ZWO EFW 8 x 1.25″



The body is CNC milled from an aircraft graded aluminum block.

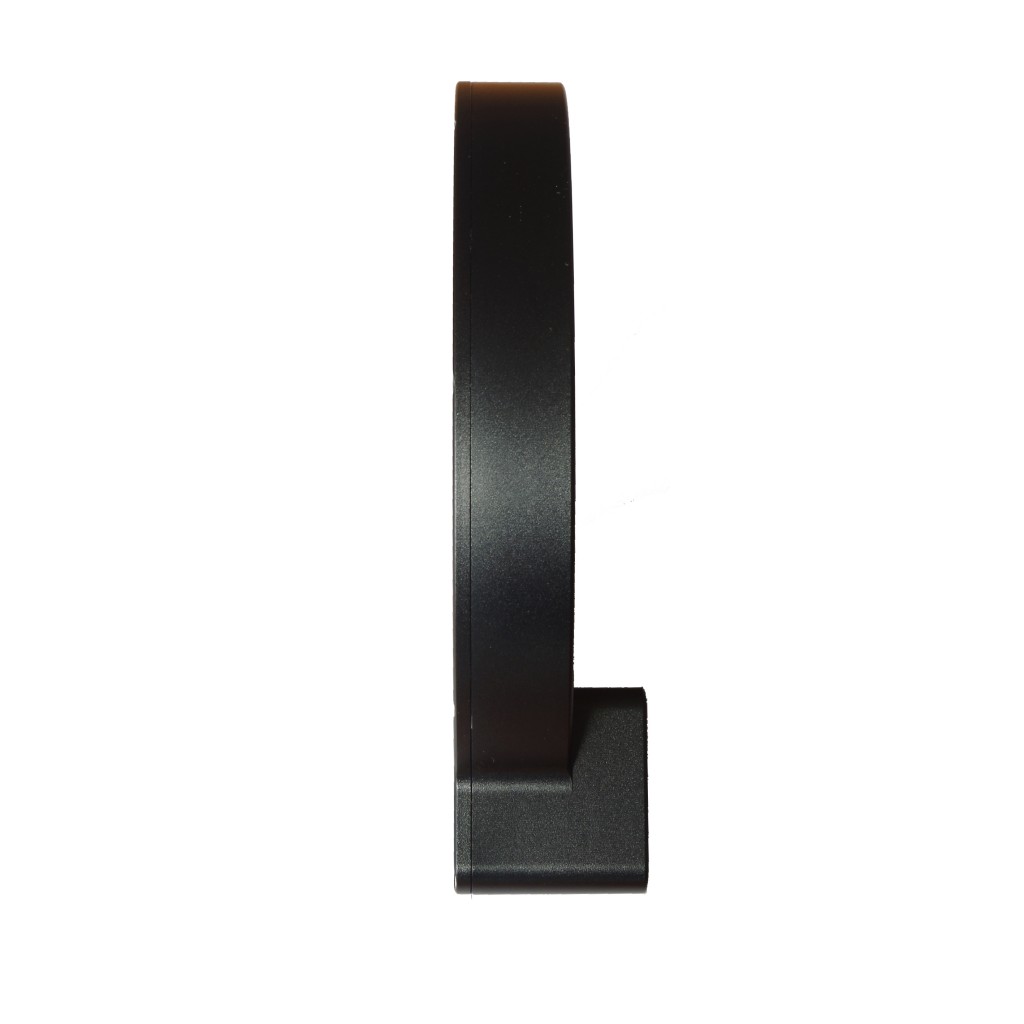

We decided to make it thinner, where it measures only 20 mm on the wheel body.


The heart ofEFW comes from NPM, Japan, whose the manufactor for the stepmotor and the quality is trustful and reliable. Guaranteed long life.

The Electronic Filter wheel can be rotated in both counter clockwise or clockwise direction for filter selection.





There are no need for multiple cables to power this wheel up, just one USB cable does the trick.The power consumption of this EFW is approximately 120mAh @ 5V, which can be operated from the Cooled CCD’s USB hub.



The distance between the filter and sensor is around 10mm when you connect it to ASI1600.

So 1.25″ filters won’t have vignetting up to F5 focal ratio scope and 31mm filter won’t have vignetting up to F2 lens.

Our new RGBL filters are recommended to work with ASI1600, it will offer nearly 1:1:1 RGB color balance.

How to install the filter?

1.25″ filters required to be: threaded  shorter than 3mm in length,  without threads less than 7mm in height

  1. Take the back cover off
  2. Lay the wheel down flat
  3. Screw-in the filters up
  4. Put the back cover on

Take the EFWmini for an example:





31mm and 36mm filter requires: a set of M2 screws and washers needed to fix the filters are included in the package .

  1. Take the back cover off. Lay the wheel down flat
  2. Hold the filter by the very edges and lay them in to the recess for each position
  3. Attach the washers,put in the screws
  4. Put the back cover on

Take the EFWmini for an example:



How to connect with the camera and telescope?








Mechanical drawing

Περισσότερες Πληροφορίες
Καθ.Βάρος (γρ.) 400

What`s in the box?

  1. 8*31mm or 7*36mm EFW body
  2. 1.25″ Holder-T2
  3. T2 nosepiece
  4. Phillips screwdriver
  5. A bag of M2 screws
  6. T2-T2 adapter(male)
  7. USB2.0 cable
