ΤΗΛΕΣΚ.

ΤΗΛΕΣΚ."ΤΑΚΑΗΑSΗΙ TOA 130NS"(OTA)

ΤΗΛΕΣΚ."ΤΑΚΑΗΑSΗΙ TOA 130NS"(OTA)

TAKAHASHI

TOA excels in both high planetary resolution and deep sky imaging, fully exploiting the capabilities of cameras with the largest sensors.

7.730,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
TAK-TOK13000

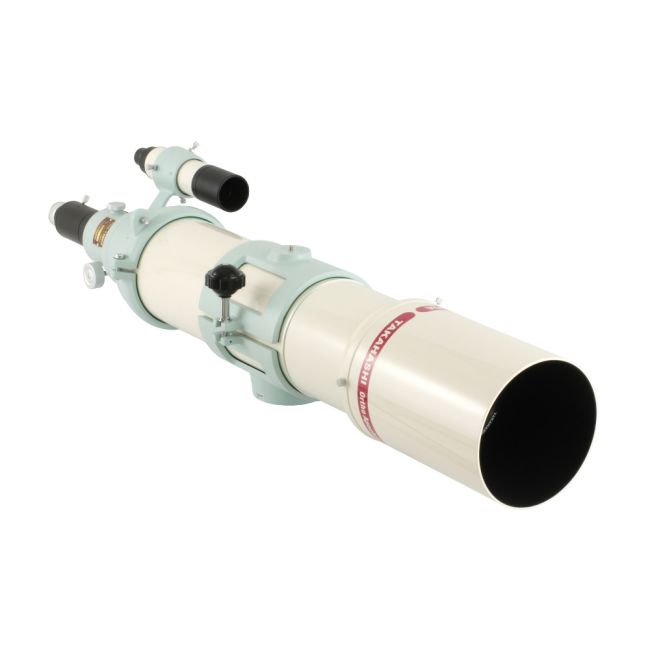

TOA-130NS TUBE COMPLETE D-130mm F-1000mm F/7.7 WITH 50.8/31.75


The Triplet Ortho-Apochromat concept of the TOA refractors makes it possible to combine sharpness and extraordinary contrast. This unique optical formula, based on a highly air-spaced ED triplet, has the advantage of completely eliminating spherical aberration while having the best chromatic correction in the Takahashi telescopes range. TOA excels in both high planetary resolution and deep sky imaging, fully exploiting the capabilities of cameras with the largest sensors.

The NS version of the TOA-130 is equipped with a conventional 69 mm diameter rack-and-pinion focuser and a retractable dew shield. A balancing ring is provided to compensate for the weight of the lens cell. In photography, the mounting of the optional TOA-35 FL field corrector offers a consistent image circle of 40 mm. There is also a focal reducer (TOA-35 RD) with a coefficient of 0.7x.

Τεχνικά Χαρακτηριστικά
Καθ.Βάρος (γρ.) 10500
Οπτικός Σχεδιασμός Διοπτρικό Αποχρωματικό
Διάμετρος (mm) 130
Εστιακή Απόσταση - F (mm) 1000
Εστιακός Λόγος (f/) 7.7
Στήριξη Δεν περιλαμβάνεται στήριξη ή τρίποδας
Ερευνητής 7x50
Μέγιστη Ωφέλιμη Μεγέθυνση (x) 260

In the box:

Characteristic Takahashi TOA-130NS refractor
Optical design ED Triplet Ortho Apochromat
Lens cell Highly air-spaced triplet. 3 lenses/3 groups. 2 x S-FPL53 ED lenses.
Coatings Hard multicoatings
Length of the optical tube 1145 mm (1012 mm with retracted dew shield)
Diameter of the optical tube 156 mm
Diameter of the dew shield 180 mm
Focuser Rack-and-pinion 2,7''

At prime focus
Focal length 1000 mm
Focal ratio F/7.7
Metal back distance 222.5 mm

With TOA-35FL field corrector
Focal length 980 mm
Focal ratio F/7.5
Image circle diameter 40 mm
metal back distance 117.5 mm

With TOA-35RD focal reducer
Focal length 698 mm
Focal ratio F/5.4
Image circle diameter 44 mm
Metal back distance 62.5 mm

With EXT-ED1.5X focal extender
Focal length 1500 mm
Focal ratio F/11.5
Image circle diameter 44 mm
Metal back distance 117.5 mm

Spot-diagram of Takahashi TOA-130 refractor at prime focus

Spot-diagram of Takahashi TOA-130 refractor with TOA-35FL field corrector

Spot-diagram of Takahashi TOA-130 refractor with TOA-35RD focal reducer
