PlaneWave IRDK24 DALL-KIRKHAM F/6.5

PlaneWave IRDK24 DALL-KIRKHAM F/6.5

PlaneWave IRDK24 DALL-KIRKHAM F/6.5

PLANEWAVE

This is a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared or ultra violet wavelengths.

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
BA-1323224IQ

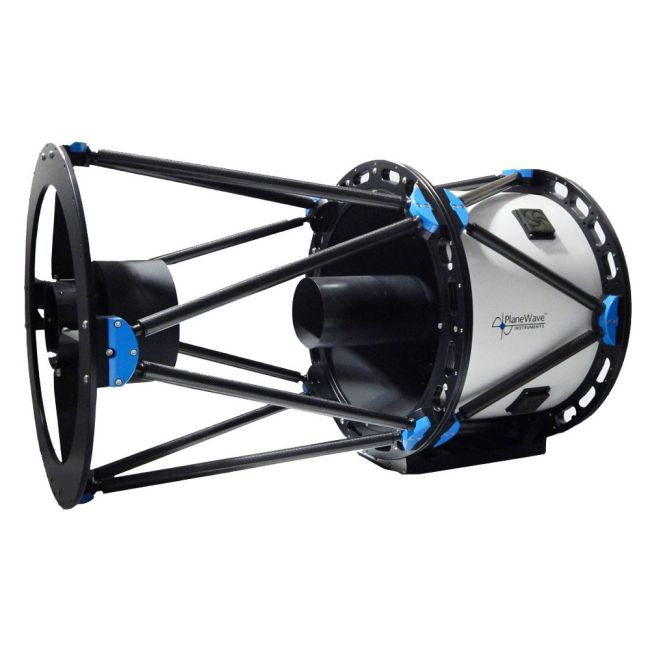

PlaneWave IRDK24 DALL-KIRKHAM F/6.5

This is a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared or ultra violet wavelengths. It is diffraction limited across a 20mm image circle at the focal plane. There are no refractive lens, only reflective components to the design. For IR application, reflectives coatings are a protected gold which give better than 98% reflectivity from .65 micron (650nm) to 5 micron (5000nm). This design is ideal for infrared astronomy or LIDAR applications. UV optimized coatings can also be used at an additional cost.

The DK is available in the three different apertures 24 ", 20", 14" and 12,5".

  • IRDK 24 Astrograph, 24 inch Infrared optimized with Fused Silica
  • a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared or ultra violet wavelengths
  • 8" Dovetail, focal length 3.962 mm (f/6.5)
  • Delta T Ready, 3,5" Hedrick Focuser and EFA Kit separately available

Fused Silica

Fused Silica is a synthetic amorphous silica glass of the highest purity and one of the most transparent glasses made. The optical and thermal properties of fused silica are superior to other types of glass due to its purity. Its transmission and homogeneity exceed those of crystalline quartz without the problems of temperature instability inherent in the crystalline form. Fused Silica has a coefficient of thermal expansion six times lower than Borosilicate (Pyrex) glass, which means that as fused silica cools down, it preserves its shape to a high degree of accuracy. This translates into consistent optical performance and unchanging focus over temperature changes. With its high melting temperature ()~ 1.600 degree Celsius), a very low coefficient of thermal expansion and resistance to thermal shock, fused silica is the material of choice for professional observatories as well as various scientific applications.


ΣΗΜΑΝΤΙΚΟ:

Για την αποστολή του τηλεσκοπίου, απαιτείται η μεταφορά του από το εξωτερικό, με έξτρα κόστος ειδικής συσκευασίας και μεταφορικών. Τα κόστη αυτά αφορούν την μεταφορά του τηλεσκοπίου από το εξωτερικό στην Ελλάδα και είναι ανεξάρτητα από το κόστος μεταφορικών εντός Ελλάδας. Παρακαλούμε, επικοινωνήστε μαζί μας για το συνολικό κόστος.



Τεχνικά Χαρακτηριστικά
Καθ.Βάρος (γρ.) 109000
Οπτικός Σχεδιασμός Κατοπτρικό Dall-Kirkham
Διάμετρος (mm) 610
Εστιακή Απόσταση - F (mm) 3962
Εστιακός Λόγος (f/) 6.5
Στήριξη Δεν περιλαμβάνεται στήριξη ή τρίποδας

In the box:

Specifications:

Optical Design

Corrected Dall-Kirkham (CDK)

Aperture (mm)

24" (610 mm)

Focal Length

3.962 mm (155.98 inch)

Focal Ratio

f/6.5

Image Field

70 mm

Back Focus Distance

14.1" (358 mm) from Mounting Surface, 5.81" (148 mm) from Racked in Focuser

Central Obstruction

47% of the Primary Mirror Diameter

Substrate

Fused Silica

Optical length

55,98 inch (1.422 mm)

Optical Tube Weight

240 lbs (109 kg)
