LEVENHUK MED D45T DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK MED D45T DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK MED D45T DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK

Levenhuk MED D45T trinocular microscope is equipped with a 16 MP digital camera that allows for taking high-resolution photos and videos. The microscope is suitable for phase contrast observations as well as for bright field and dark field ones.
2.515,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους -που δεν εξαρτώνται από την εταιρία μας- δεν μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-74010


LEVENHUK MED D45T DIGITAL TRINOCULAR MICROSCOPE

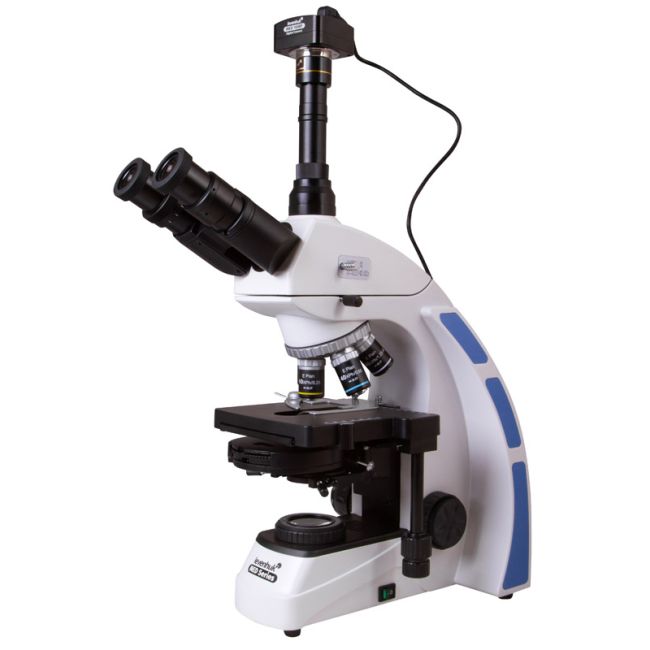

Levenhuk MED D45T trinocular microscope is equipped with a 16 MP digital camera that allows for taking high-resolution photos and videos. The microscope is suitable for phase contrast observations as well as for bright field and dark field ones. It is the perfect asset for a clinical diagnostic center, biochemical laboratory, or microbiological laboratory. The microscope has a provision or Köhler illumination adjustment; all observations are made with a magnification of 40x to 1000x.

The microscopes in the Levenhuk MED 45 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and DIC prisms that feature minimal focus deviations and correct aberrations. All in all, modular design and simple operation make Levenhuk MED 45 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

The trinocular head consists of the binocular visual part inclined by 30 degrees and the vertical eyepiece tube where the digital camera is positioned. The kit includes a camera with a 16 MP sensor. It can be used to transmit images from the objective to an external screen as well as to take photos of specimens and videos of studies. The camera is connected to the PC via a USB cable included in the kit. In addition, image editing software can be installed from the disc.

Optical accessories include phase contrast plan achromatic objective lenses of various magnification and 10x wide field eyepieces with diopter adjustment. Objective lenses 40x and 100x are fitted with spring rims that protect the optics from incidental damage. The optical system produces clear and high-contrast images without chromatic aberration. A 100x objective lens is used for oil immersion. All accessories are made of optical glass with anti-fungal coating.

The double-coordinate stage has a mechanical scale that helps to promptly and accurately place specimens under the objective. Coarse and fine focusing is available. Köhler illumination adjustment is available. An LED light is located at the bottom and has a brightness adjustment. The phase contrast condenser can be used for dark field studies by the “dry” method.

The light is powered by an AC power supply.

Features:

  • Trinocular head, magnification range of 40x to 1000x
  • Infinity-corrected phase contrast plan achromatic optical system
  • Wide-field eyepieces with diopter adjustment
  • Phase contrast condenser with dark field
  • Lower LED light with brightness adjustment
  • Köhler illumination is available
  • 16MP digital camera is included

The kit includes:

  • Microscope base with a stand
  • 360° rotatable trinocular head
  • Infinity-corrected phase contrast plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with anti-fungal coating
  • Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)
  • Phase contrast device (dark field)
  • Filters: blue, green, yellow
  • Bottle of immersion oil
  • LED (5 W)
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • 16MP digital camera
  • Camera adapter
  • Camera mount
  • USB cable for connecting and charging the camera
  • CD with software and drivers
  • User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Τεχνικά Χαρακτηριστικά
Μεγεθύνσεις (x) 40-1000
Κεφαλή Περιστρεφόμενη κατά 360º με κλίση 45º
Φωτισμός LED
Μικρομετρική Εστίαση Ακριβείας
Προσοφθάλμιο WF10x/22mm
Διαστάσεις Τράπεζας (mm) 180x150
Είδος Τράπεζας Μετακινούμενη με κλίμακα

Head

trinocular, rotatable 360°, inclined 45°

Optics material

optical glass with an anti-fungal coating

Magnification, x

40–1000

Eyepiece tube diameter, mm

30mm (binocular head); 23.2mm (third vertical tube)

Eyepieces

wide-field with diopter adjustment WF10x/22mm (2 pcs)

Objectives

infinity-corrected phase contrast plan achromatic: 4x, 10x, 40xs, 100xs (oil)

Revolving nosepiece

5 objectives

Interpupillary distance, mm

48–75

Stage, mm

mechanical double-layer, 180x150mm, with a mechanical scale

Stage moving range, using focusing mechanism, mm

75/50

Eyepiece diopter adjustment, diopters

±5

Condenser

phase contrast (with dark field)

Focus

coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion

Body

metal

Backlight

LED

Brightness adjustment

yes

Power source

100–240V

Light source type

lower light, 5W, 85–230 V AC

Filters

blue, green, yellow

Additionally

collector lens, Köhler illumination

Megapixels

16

Sensor

1/2.33

Pixel size, µm

1/2.33

Video recording

yes

Speed

[email protected]
[email protected]
[email protected]

Usage location

third eyepiece tube of 23.2mm diameter; instead of the eyepiece

Spectral range, nm

380-650

White balance

auto/manual

Exposure control

0.2–2000ms

Software

Levenhuk

Programmable options

image size, brightness, exposure time

Camera slot

USB 2.0, 480 Mb/s

System requirements

Windows XP/Vista/7/8/10 (32 and 64-bit), Mac OS 10.12, Linux, processor 2.8 GHz Intel Core 2 or higher, 2 GB RAM or higher, USB 2.0 port, 17

Camera power supply

via USB cable

Usage

General use product.
May be used by kids over 3 years old.

Digital camera in the kit

yes

Maximum resolution

4632x3488
