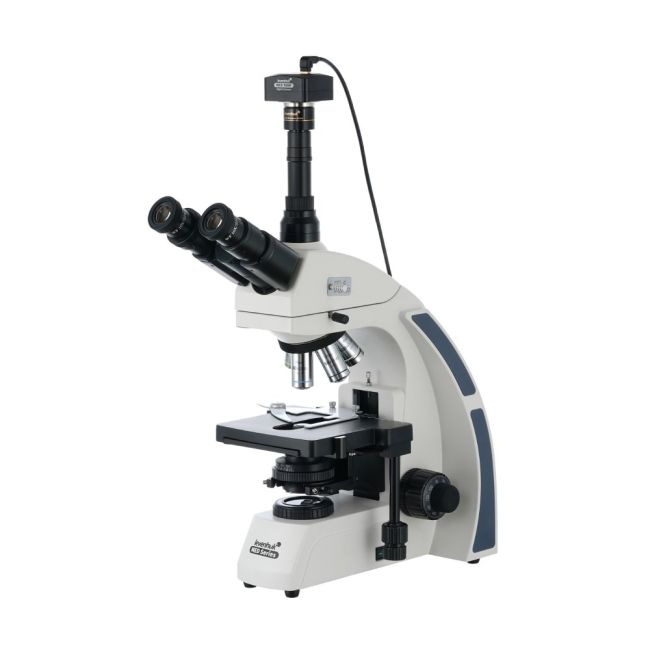

Levenhuk MED D40T LCD Digital Trinocular Microscope

The Levenhuk MED D40T LCD digital microscope features not only the infinity-corrected pan achromatic optical system and Köhler illumination, but also an LCD digital camera include in the kit.
2.245,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους -που δεν εξαρτώνται από την εταιρία μας- δεν μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-74007

Levenhuk MED D40T LCD Digital Trinocular Microscope

The Levenhuk MED D40T LCD digital microscope features not only the infinity-corrected pan achromatic optical system and Köhler illumination, but also an LCD digital camera include in the kit. The microscope is created for professionals; it can be used in laboratories, medical centers, and academic institutions for training students. It is suitable both for careful research and for presentations, workshops, and lectures.

The microscopes in the Levenhuk MED 40 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and DIC prisms that feature minimal focus deviations and correct aberrations. All in all, modular design and simple operation make Levenhuk MED 40 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

The trinocular head can be rotated 360°, so the microscope is convenient for group studies. The binocular visual part is inclined by 30°, whereas the eyepiece tube for a digital camera is vertical. The kit includes a 5MP LCD camera. You do not have to connect it to a PC or install any additional software. The camera displays the image on the built-in screen, it can be coupled with an external screen or a TV set, can be connected to additional equipment (earphones, keyboard, computer mouse, etc.). Memory cards and other data storage devices are supported. The camera allows for taking high-resolution photos and videos.

The wide-field eyepieces ensure clear vision, have 10x magnification, and enable diopter adjustment. There are five objective lenses of various magnification; a 100x objective lens is suitable for observations by the oil immersion method. Three objectives have spring rims that protect the optics from incidental damage. All of the optic surfaces of accessories are protected with anti-fungal coating.

The double-coordinate stage is equipped with a mechanical scale. The lighting system is placed below; it includes an LED and an Abbe condenser with an iris diaphragm. There is a filter holder available. The light brightness is adjustable.

Illumination is powered by an AC power supply.

Features:

  • Infinity-corrected plan achromatic optics
  • Trinocular head, magnification range of 40x to 1000x
  • LED light with brightness adjustment
  • Köhler illumination is available
  • Powered by AC power supply
  • 5MP digital camera with an LCD screen is included

The kit includes:

  • Microscope base with a stand
  • 360° rotatable trinocular head
  • Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with anti-fungal coating
  • Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Bottle of immersion oil
  • LED (5W)
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • 5MP digital camera with an LCD screen
  • Camera mount
  • Power cord for camera
  • User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Head

trinocular, rotatable 360°, inclined 30°

Optics material

optical glass with an anti-fungal coating

Magnification, x

40–1000

Eyepiece tube diameter, mm

30mm (binocular head); 23.2mm (third vertical tube)

Eyepieces

wide-field with diopter adjustment WF10x/22mm (2 pcs)

Objectives

infinity-corrected plan achromatic: 4x, 10x, 40xs, 60xs, 100xs (oil)

Revolving nosepiece

5 objectives

Interpupillary distance, mm

48–75

Stage, mm

mechanical double-layer, 180x150mm, with a mechanical scale

Stage moving range, using focusing mechanism, mm

75/50

Eyepiece diopter adjustment, diopters

±5

Condenser

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder

Diaphragm

iris

Focus

coaxial, coarse (0.5mm) and fine (0.002mm), with rack and pinion

Body

metal

Backlight

LED

Brightness adjustment

yes

Power source

100–240V

Light source type

lower light, 5W, 85–230 V AC

Filters

blue, green, yellow

Additionally

collector lens, Köhler illumination

Megapixels

5

Sensor

1/2.5

Pixel size, µm

2.2x2.2

Sensitivity, v/[email protected] nm

0.53

Video recording

yes

Speed

15 fps

Usage location

the third eyepiece tube of 23.2mm; with the use of camera fasteners

Image format


White balance

auto/manual

Exposure control

auto/manual

Software

Android 5.1 (multilingual)

Programmable options

measurements, brightness, particle analysis, etc.

Camera slot

USB 2.0 (2 pcs), mini HDMI, Wi-Fi, TF memory card slot

Camera power supply

12V AC; via AC adapter

Additional

LCD: 9.4 inch, color, sensor; built-in memory: 4GB

Usage

General use product.
May be used by kids over 3 years old.

Ability to connect additional equipment

memory cards microSD up to 32GB are supported;
screen/TV (with HDMI slot);
flash drive, mouse, keyboard (with USB slot); earphones (3.5mm)

Video format

1080p, *.3gp

Digital camera in the kit

yes

Maximum resolution

2,048x1,536 pixels
