LEVENHUK MED D30T LCD DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK MED D30T LCD DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK MED D30T LCD DIGITAL TRINOCULAR MICROSCOPE

LEVENHUK

You do not need to connect a microscope to a computer in order to set up video parameters, transmit images of specimens to an external device, or process photographs and video records. You can do all of these things right via the camera screen.
1.859,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους -που δεν εξαρτώνται από την εταιρία μας- δεν μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-73999


LEVENHUK MED D30T LCD DIGITAL TRINOCULAR MICROSCOPE


Features:

  • Trinocular head, magnification range of 40x to 1000x
  • Infinity-corrected semi-plan achromatic optics
  • The eyepieces and objective lenses have an anti-fungal coating
  • Enhanced 3W LED light with brightness adjustment
  • Köhler illumination is available
  • Powered by an AC power supply
  • 5MP digital camera with an LCD screen is included

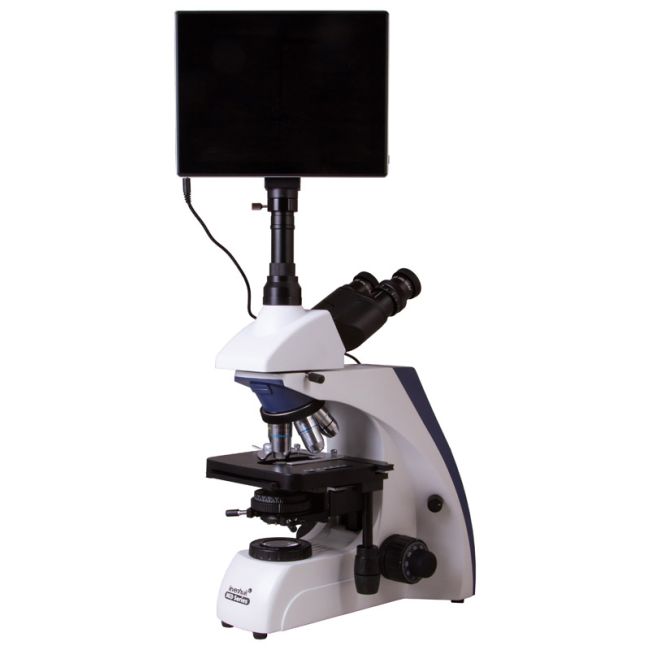

Levenhuk MED D30T LCD is a trinocular microscope with a digital camera with a built-in screen. You do not need to connect a microscope to a computer in order to set up video parameters, transmit images of specimens to an external device, or process photographs and video records. You can do all of these things right via the camera screen. In addition, the microscope uses infinity-corrected semi-plan achromatic optics and allows for setting up Köhler illumination. Levenhuk MED D30T LCD is a microscope for professional observations.

The microscopes in the Levenhuk MED 30 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity SemiPlan objectives and allows for obtaining clear, high contrast images with high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and DIC prisms that feature minimal focus deviations and correct aberrations. All in all, modular design and simple operation make Levenhuk MED 30 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

A trinocular head is divided into a visual part and a tube for installing a digital camera. That allows for conducting observations through the eyepieces and recording at the same time. The head rotates 360° around its axis, which will be appreciated by those who often conduct research in a group. The visual part has a 30° inclination angle.

The eyepieces and objective lenses are made of the optical glass and protected with an anti-fungal coating. Semi-plan achromatic optics flatten field of view, enhances color rendering, and reduces chromatic aberrations. The eyepieces provide a good view and provide 10x magnification. There are five objective lenses. The most powerful of them are provided with protective spring-loaded frames. A 100x objective lens supports using oil immersion. The sharpness adjustment is done by rotating coarse and fine adjustment knobs.

A digital camera does not require installing additional software. You can operate any camera options from an LCD screen and observe how micro research goes. You can connect the camera to external screens; it is compatible with various additional accessories (headphones, memory cards, and others). A 5MP sensor creates a high-quality image and allows for taking high resolution pictures and recording smooth videos with a great frame rate.

Under the optics, there is a stage with a mechanical scale. Underneath, there is an Abbe condenser with an iris diaphragm and a filter holder. And below it, there is an LED light with brightness adjustment. In addition, you can set up Köhler illumination. The light is powered by an AC power supply.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Τεχνικά Χαρακτηριστικά
Μεγεθύνσεις (x) 40-1000
Αντικειμενικός 1 4x
Αντικειμενικός 2 10x
Αντικειμενικός 3 40xs
Αντικειμενικός 4 60xs, 100xs (oil)
Φωτισμός LED
Μικρομετρική Εστίαση Ακριβείας
Προσοφθάλμιο WF10x/22mm
Διαστάσεις Τράπεζας (mm) 180x160
Είδος Τράπεζας Μετακινούμενη με κλίμακα
  • Head: trinocular, rotatable 360°, inclined 30°
  • Optics material: optical glass with an anti-fungal coating
  • Eyepiece tube diameter, mm: 30mm (binocular head);23.2mm (third vertical tube)
  • Revolving nosepiece: 5 objectives
  • Interpupillary distance, mm: 48–75
  • Stage moving range, using focusing mechanism, mm: 80/50
  • Eyepiece diopter adjustment, diopters: ±5
  • Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Diaphragm: iris
  • Focus: coaxial, coarse (0.5mm) and fine (0.002mm), with rack and pinion
  • Body: metal
  • Brightness adjustment: yes
  • Power source: 100–240 V
  • Light source type: lower light, 3W, with an extra lens
  • Filters: blue, green, yellow
  • Additionally: collector lens, Köhler illuminationLCD screen 9.4 inch, color, sensor;built-in memory: 4GB
  • Megapixels: 5
  • Sensor: 1/2.5
  • Pixel size, µm: 2.2x2.2
  • Sensitivity, v/[email protected] nm: 0.53
  • Video recording: yes
  • Speed: 15 fps
  • Usage location: third eyepiece tube of 23.2mm diameter, with the help of a camera mount
  • Image format: *.jpg
  • White balance: auto/manual
  • Exposure control: auto/manual
  • Software: Android 5.1 (multilingual)
  • Programmable options: measurements, brightness, particle analysis, etc.
  • Camera slot: USB 2.0 (2 pcs), mini HDMI, Wi-Fi, TF memory card slot
  • Camera power supply: 12V AC; via AC adapter
  • Usage: General use product. May be used by kids over 3 years old.
  • Ability to connect additional equipment: supports microSD cards up to 32GB; monitor/TV (with HDMI connector); a flash drive, a mouse, keyboard (with a USB slot); headphones (3.5mm)
  • Video format: 1080p, *.3gp
  • Digital camera in the kit: yes
  • Maximum resolution: 2048x1536 pixels

In the box:

  • Microscope base with a stand
  • 360° rotatable trinocular head
  • Infinity-corrected semi-plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating
  • Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Vial of immersion oil
  • 3W LED
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • 5MP digital camera with an LCD screen
  • Camera mount
  • Power cord for camera
  • User manual and lifetime warranty
