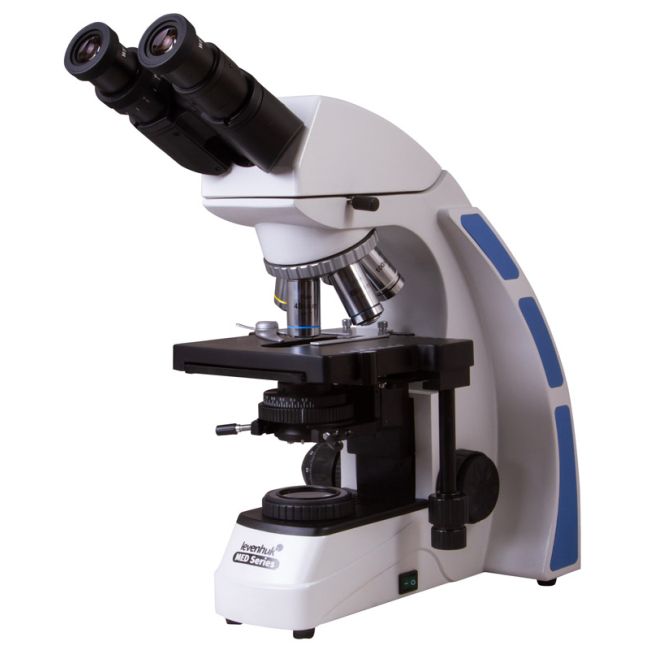

LEVENHUK MED 40B BINOCULAR MICROSCOPE

LEVENHUK MED 40B BINOCULAR MICROSCOPE

LEVENHUK MED 40B BINOCULAR MICROSCOPE

LEVENHUK

The Levenhuk MED 40B binocular microscope has a professional plan achromatic optical system with Köhler illumination adjustment and 40x to 1000x magnification.
1.219,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους -που δεν εξαρτώνται από την εταιρία μας- δεν μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-74004


LEVENHUK MED 40B BINOCULAR MICROSCOPE

Features:

  • Infinity-corrected plan achromatic optics
  • Binocular head, magnification range of 40x to 1000x
  • LED light with brightness adjustment
  • Köhler illumination is available
  • Powered by AC power supply

The Levenhuk MED 40B binocular microscope has a professional plan achromatic optical system with Köhler illumination adjustment and 40x to 1000x magnification. The microscope will be useful for both a biochemist and a university professor. This optical instrument is suitable for various highly complex microscopic studies and helps you observe an object with a good degree of detail.

The microscopes in the Levenhuk MED 40 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and DIC prisms that feature minimal focus deviations and correct aberrations. All in all, modular design and simple operation make Levenhuk MED 40 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

The microscope is equipped with a binocular head that enables you to make observations with both eyes at the same time. The visual module is comfortably inclined by 30° – your neck muscles will not get tired even after long hours of observations. The head may be rotated around its axis by 360°. The microscope is quite useful for group observations when several researchers have to study the same specimen.

The kit includes such optical accessories as wide-field eyepieces and five infinity-corrected plan achromatic objective lenses. Eyepieces have 10x magnification, ensure clear vision, and enable diopter adjustment. The objective lenses minimize optical distortion, improve the contrast and color, and even the field of view. They are placed in the five-seat revolving nosepiece. High-magnification objectives have spring rims; a 100x objective lens allows using oil immersion in observations. All optic surfaces of accessories are protected with anti-fungal coating. The sharpness is adjusted with coarse and fine adjustment knobs.

The stage with a mechanical scale can move in two directions. The light source is located under the stage. It is a 5 W LED with brightness adjustment. The light intensity is adjusted by an Abbe condenser with an iris diaphragm. There is a filter holder available.

Illumination is powered by an AC power supply.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Τεχνικά Χαρακτηριστικά
Μεγεθύνσεις (x) 40-1000
Αντικειμενικός 1 4x
Αντικειμενικός 2 10x
Αντικειμενικός 3 40xs
Αντικειμενικός 4 60xs, 100xs (oil)
Φωτισμός LED
Μικρομετρική Εστίαση Ακριβείας
Προσοφθάλμιο WF10x/22mm
Διαστάσεις Τράπεζας (mm) 180x150
Είδος Τράπεζας Μετακινούμενη με κλίμακα
  • Head: binocular, rotatable 360°, inclined 30°
  • Optics material: optical glass with an anti-fungal coating
  • Eyepiece tube diameter, mm: 30
  • Revolving nosepiece: 5 objectives
  • Interpupillary distance, mm: 48–75
  • Stage moving range, using focusing mechanism, mm: 75/50
  • Eyepiece diopter adjustment, diopters: ±5
  • Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Diaphragm: iris
  • Focus: coaxial, coarse (0.5mm) and fine (0.002mm), with rack and pinion
  • Body: metal
  • Brightness adjustment: yes
  • Power source: 100–240 V
  • Light source type: lower light, 5W, 85–230 V AC
  • Filters: blue, green, yellow
  • Additionally: collector lens, Köhler illumination
  • Usage: General use product. May be used by kids over 3 years old.

In the box:

  • Microscope base with a stand
  • 360° rotatable binocular head
  • Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with anti-fungal coating
  • Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Bottle of immersion oil
  • LED (5 W)
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • User manual and lifetime warranty
