ΤΗΛΕΣΚ."TAKAHASHI EPSILON 180 ED NEWTON" (only tube)

ΤΗΛΕΣΚ."TAKAHASHI EPSILON 180 ED NEWTON" (only tube)

TAKAHASHI

Regardless of its photographic qualities, the Epsilon is a first-rate wide-field observation telescope. The observation of star clusters and galaxies will give you intense pleasure due to the fineness of the stars. It proves to be a fabulous instrument for the deep sky and the search for comets.

5.540,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
TAK-TEK18010


 EPSILON-180ED REFLECTOR OTA


The catadioptric telescopes of the Epsilon series are wide-field astrographs with an hyperbolic primary mirror. A corrector is integrated in the rack-and-pinion focuser and offers a flat field with stars less than 10μm at the edge of the 44mm image circle.

The Epsilon-130D has a focal ratio of F/2.8. Its very short focal length of 500 mm offers a field of view of 5° and is therefore ideal for imaging large areas of stars and nebulae. Its secondary mirror is mounted on a reinforced spider to avoid any flexion. The rack-and-pinion focuser is equipped with a CAA (Camera Angle Adjuster) for photographic framing.

The primary mirror cell is equipped with 3 double-action adjusting screws (push/pull) with lock nut for pressure adjustment to minimise stress.

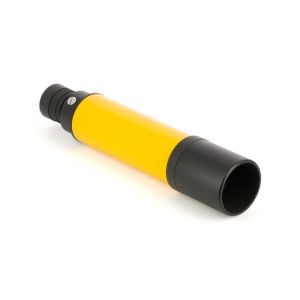

The collimation of the Epsilon-180ED is very easy because it does not need to be done on a star. The optical axis is represented by markings on the 2 mirrors. Takahashi has designed a simple collimation eyepiece system particularly adapted to the Epsilon allowing the adjustment of the mirrors in daylight, a big advantage compared to a classical telescope.

Regardless of its photographic qualities, the Epsilon is a first-rate wide-field observation telescope. The observation of star clusters and galaxies will give you intense pleasure due to the fineness of the stars. It proves to be a fabulous instrument for the deep sky and the search for comets. The observation of the Lagoon and Trifide nebulae in the same field is extraordinary and striking.

Τεχνικά Χαρακτηριστικά
Καθ.Βάρος (γρ.) 10700
Οπτικός Σχεδιασμός Κατοπτρικό Newtonian (Νευτώνιο)
Διάμετρος (mm) 180
Εστιακή Απόσταση - F (mm) 500
Εστιακός Λόγος (f/) 2.8
Στήριξη Δεν περιλαμβάνεται στήριξη ή τρίποδας
Μέγιστη Ωφέλιμη Μεγέθυνση (x) 360
Characteristics Takahashi Epsilon-180ED reflector
Optical design Modified hyperbolic Newtonian
Combination Hyperbolic primary mirror + flat secondary mirror + field flattener
Length of the optical tube assembly 570 nm
Diameter of the optical tube assembly 232 nm

At prime focus
Focal length 500 mm
Focal ratio F/2.8
Image circle diameter 44 mm
Metal back distance 56.2 mm

Spot-diagram of the Takahashi Epsilon-180ED reflector at prime focus
