ASTRONOMIK CLS CLIP-FILTER FOR CANON EOS CAMERAS WITH APS C SENSOR

ASTRONOMIK CLS CLIP-FILTER FOR CANON EOS CAMERAS WITH APS C SENSOR

ASTRONOMIK CLS CLIP-FILTER FOR CANON EOS CAMERAS WITH APS C SENSOR

ASTRONOMIK

The Astronomik CLS Clip-Filter for Canon EOS APS-C cameras is used for Deep-Sky photography in slightly light polluted areas and can be inserted into the camera body within seconds.

144,00 €

Άμεσα διαθέσιμο

Άμεσα διαθέσιμο

Αποστέλλεται εντός 24-48 ωρών.
Συνήθως, παραγγελίες που λαμβάνουμε μέχρι τις 3μ.μ  για άμεσα διαθέσιμα είδη , αποστέλλονται αυθημερόν.

Διαθεσιμότητα: Σε απόθεμα
SKU
TS8h00ic



Astronomik CLS Clip-Filter for Canon EOS cameras with APS C sensor


The Astronomik CLS Clip-Filter for Canon EOS APS-C cameras is used for Deep-Sky photography in slightly light polluted areas and can be inserted into the camera body within seconds.

The Challenge:

Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive.
  • If you place a filter holder between your camera body and lens, you loose the ability to focus to infinity.
  • For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
  • With long exposure times, your camera’s sensor chip is exposed to more dust.


With the Astronomik Clip-Filter System you can take care of all of these problems at once!

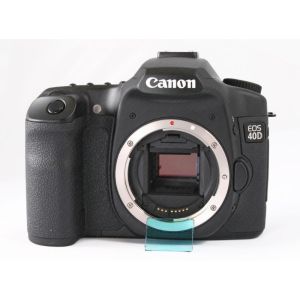

The patented Astronomik Clip-Filters are made of black anodized aluminum and laser-cut on state-of-the-art machines. They can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain operational!

Almost all Canon system lenses (with the exception of the EF-S series) and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)

Compatibility:

Not suitable are cameras offered before 2003 and also not suitable all varieties of the Canon EOS 1D and EOS M.

Filter transmission curve:

  • The horizontal axis is the wavelength in nanometers (nm). 400 nm is deep blue, at 520 nm the human eye senses green and at 600 nm red. At 656 nm is the famous "H-Alpha" emission line of hydrogen.
  • The transmission in % is plotted on the vertical axis.
  • The red line shows the transmission of the filter.
  • Visual filters: The grey line in the background shows the relative sensitivity of the human eye at night. The maximum is at ~510 nm and drops to longer and shorter wavelengths. You can easily see, that you can´t see anything of the H-alpha line at night (even if you can during daylight!) The sensitivity at 656 nm is 0% at night!
  • Photographic filters: The grey line in the background shows the sensitivity of a typical CCD sensor.
  • The most important artifical emission lines are shown in orange. The artifical light pollution is dominated by see mercury (Hg) and sodium (Na), which are used in nearly all streetlights.
  • The most important emission lines from nebulas are shown in green. The most important lines are from ionized hydrogen (H-alpha and H-beta), double ionized oyxgen ([O III]) and ionized sulfur ([S II]). The square brackets indicate that these lines are forbidden.
  • Transmission at H-beta and [O III]: 95%
  • Transmission at H-alpha: 97%
  • Blocking: ultraviolet
  • Mounting: Clip-mounted for Canon EOS cameras with APS-C sensor
  • Inserting and removing: within seconds
  • Camera and lens funtions: unaffected
  • Anti reflective coating: completely resistant against high humidity, scratches and aging effects
