PLANEWAVE
The PlaneWave Instruments CDK17 is a 17 inch (0.43 m) f/6.8 Corrected Dall-Kirkham Astrograph telescope. The CDK17 covers a 70 mm field of view without any field curvature, off-axis coma, or astigmatism.
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

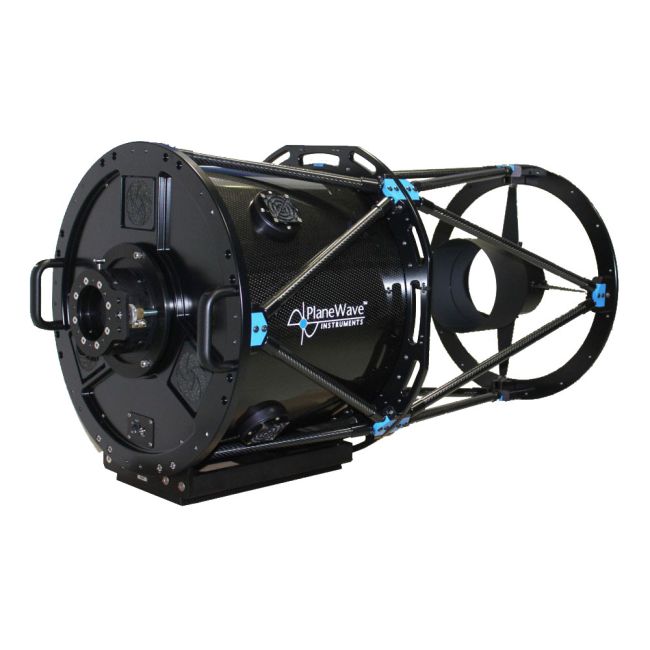

PlaneWave CDK17 ASTROGRAPH F/6.8 WITH FUSED SILICA OPTICS
The PlaneWave Instruments CDK17 is a 17 inch (0.43 m) f/6.8 Corrected Dall-Kirkham Astrograph telescope. The CDK17 covers a 70 mm field of view without any field curvature, off-axis coma, or astigmatism. The instrument weight is 94 lbs (43 kg) and comes standard with a back plate retaining ring ready to accept the focuser of your choice.
The abbreviation CDK stands for the optical system of the PlaneWave astrographs - a Dall Kirkham Cassegrain with a optical correction unit.
Fused Silica
Fused Silica is a synthetic amorphous silica glass of the highest purity and one of the most transparent glasses made. The optical and thermal properties of fused silica are superior to other types of glass due to its purity. Its transmission and homogeneity exceed those of crystalline quartz without the problems of temperature instability inherent in the crystalline form. Fused Silica has a coefficient of thermal expansion six times lower than Borosilicate (Pyrex) glass, which means that as fused silica cools down, it preserves its shape to a high degree of accuracy. This translates into consistent optical performance and unchanging focus over temperature changes. With its high melting temperature ()~ 1.600 degree Celsius), a very low coefficient of thermal expansion and resistance to thermal shock, fused silica is the material of choice for professional observatories as well as various scientific applications.
Spot Diagram
The graphic on the right shows the vignetting and spot diagrams for the CDK 17 Widefield Astrographer depending on the large CCD chips KAF 6303, KAF 11000 and KAF 09000 for the three wavelengths 730, 585 and 430 Nanometer.
The diameter of a star at the edge of the flat field corresponds to the pixel size of current large-format CCD chips and the imaging quality of the optics is limited only by the seeing conditions and the quality of the tracking. The large field of view of 70mm diameter offers enough tolerance for CCD cameras with ever larger chips - also for amateur astronomy.
IMPORTANT:
Τhe telescope is transported from abroad, with extra costs of special packaging and shipping. These costs are related to the transport of the telescope from abroad to Greece and are irrelevant of the shipping cost within Greece. Please, contact us for the total cost.
| Net Weight (g) | 48000 |
|---|---|
| Optical design | Κατοπτρικό Dall-Kirkham |
| Aperture (mm) | 432 |
| Focal length - F (mm) | 2939 |
| Focal ratio (f/) | 6.8 |
| Mount | Not included |
In the box:
Specifications:
Optical Design
Corrected Dall-Kirkham (CDK)
Aperture (mm)
17" (432 mm)
Focal Length
2.939 mm (115.71 inch)
Focal Ratio
f/6.8
Image Field
70 mm
Back Focus Distance
10.24" (260 mm) from Mounting Surface, 7.24" (184 mm) from Racked in Focuser
Central Obstruction
23.7 % by surface area, 49% of the Primary Mirror Diameter
Substrate
Fused Silica
Optical length
42 inch (1.067 mm)
Optical Tube Weight
106 lbs (48 kg)
